Description

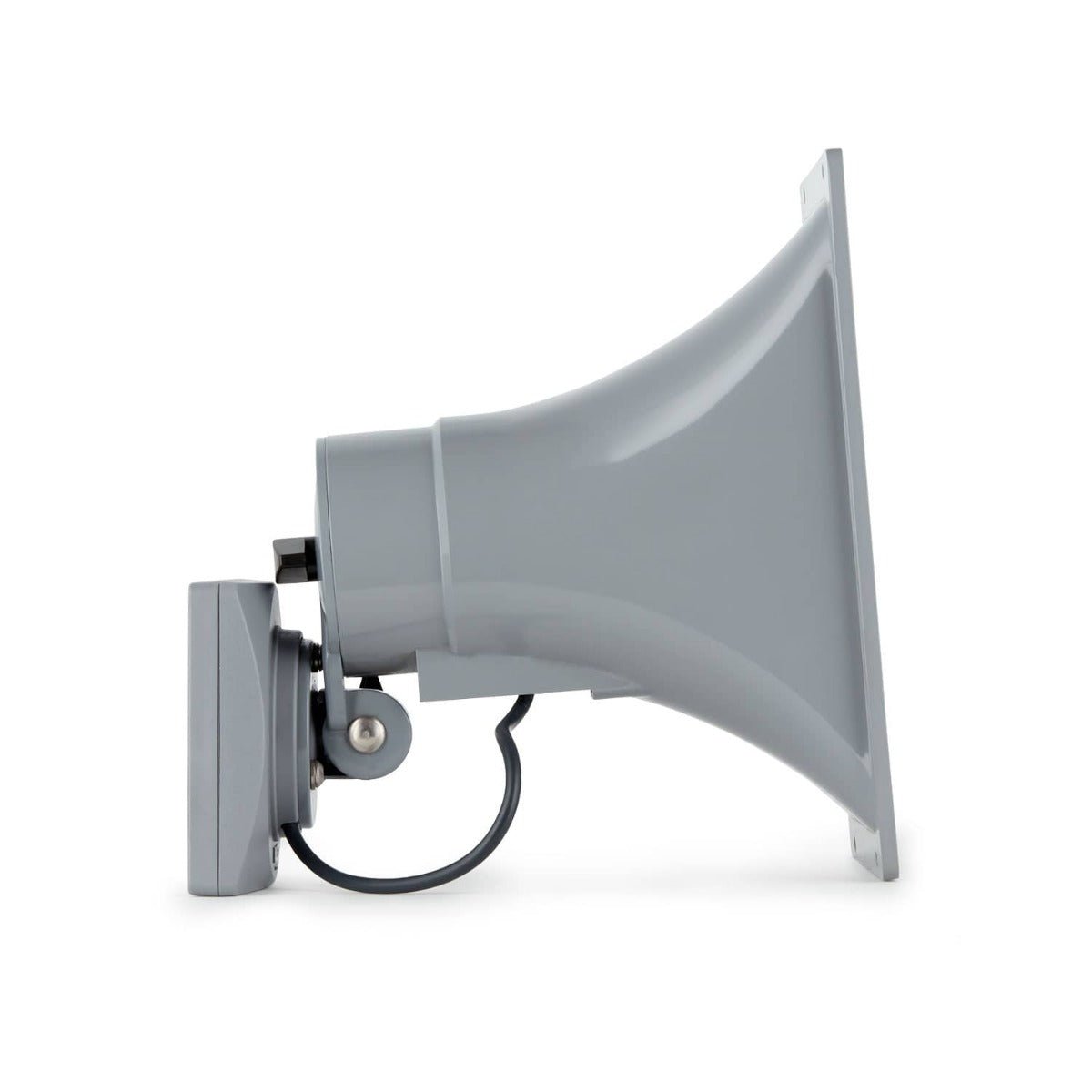

Algo 1196 Satellite Horn Speaker
The Algo 1196 Satellite Horn Speaker is an add-on speaker to an Algo 8196 SIP Horn device for live voice paging, alerting, announcements and emergency notification. The Algo 8196 can drive and supervise multiple Algo 1196 satellite speakers, reducing required network ports and cable drops while maintaining all of the benefits of IP paging.

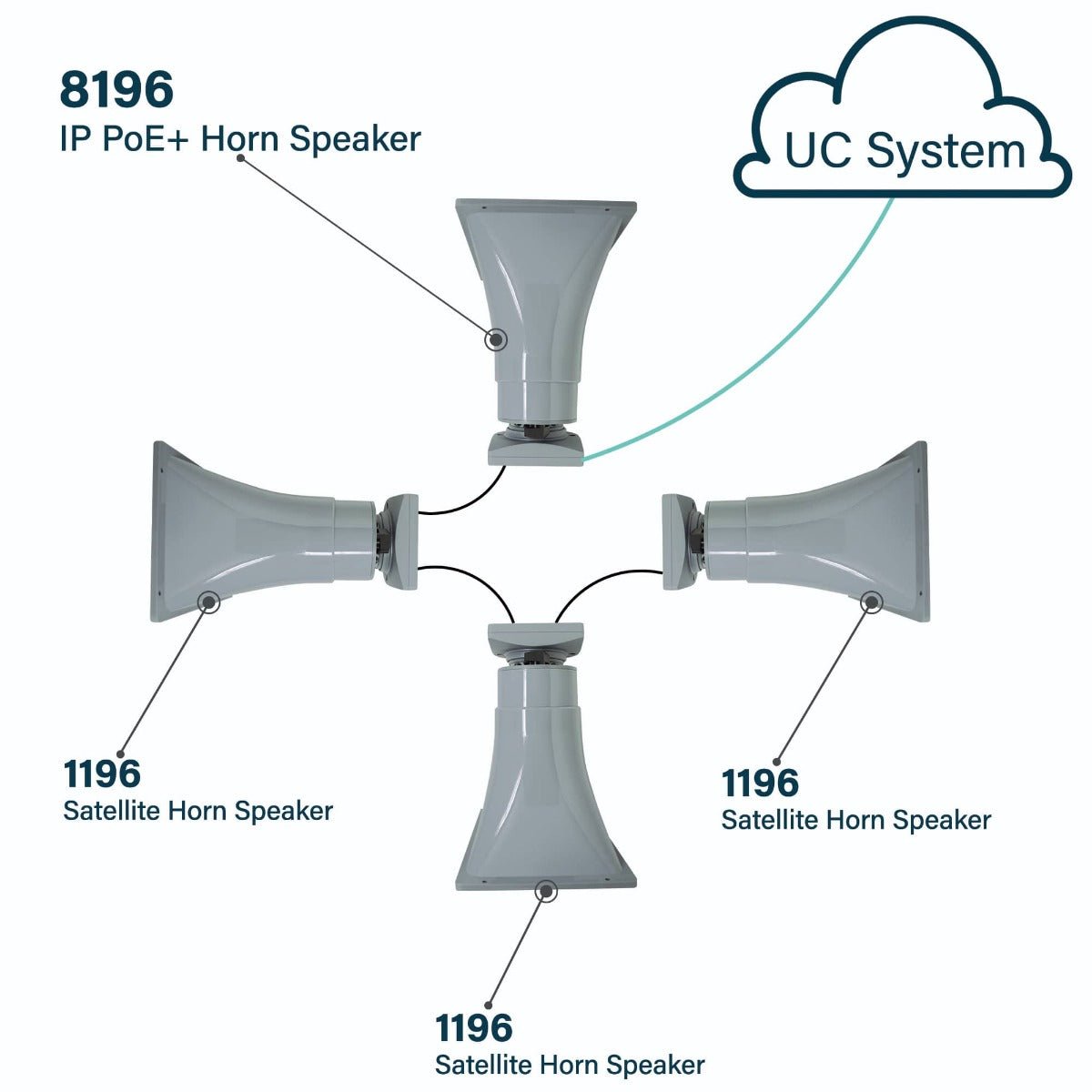

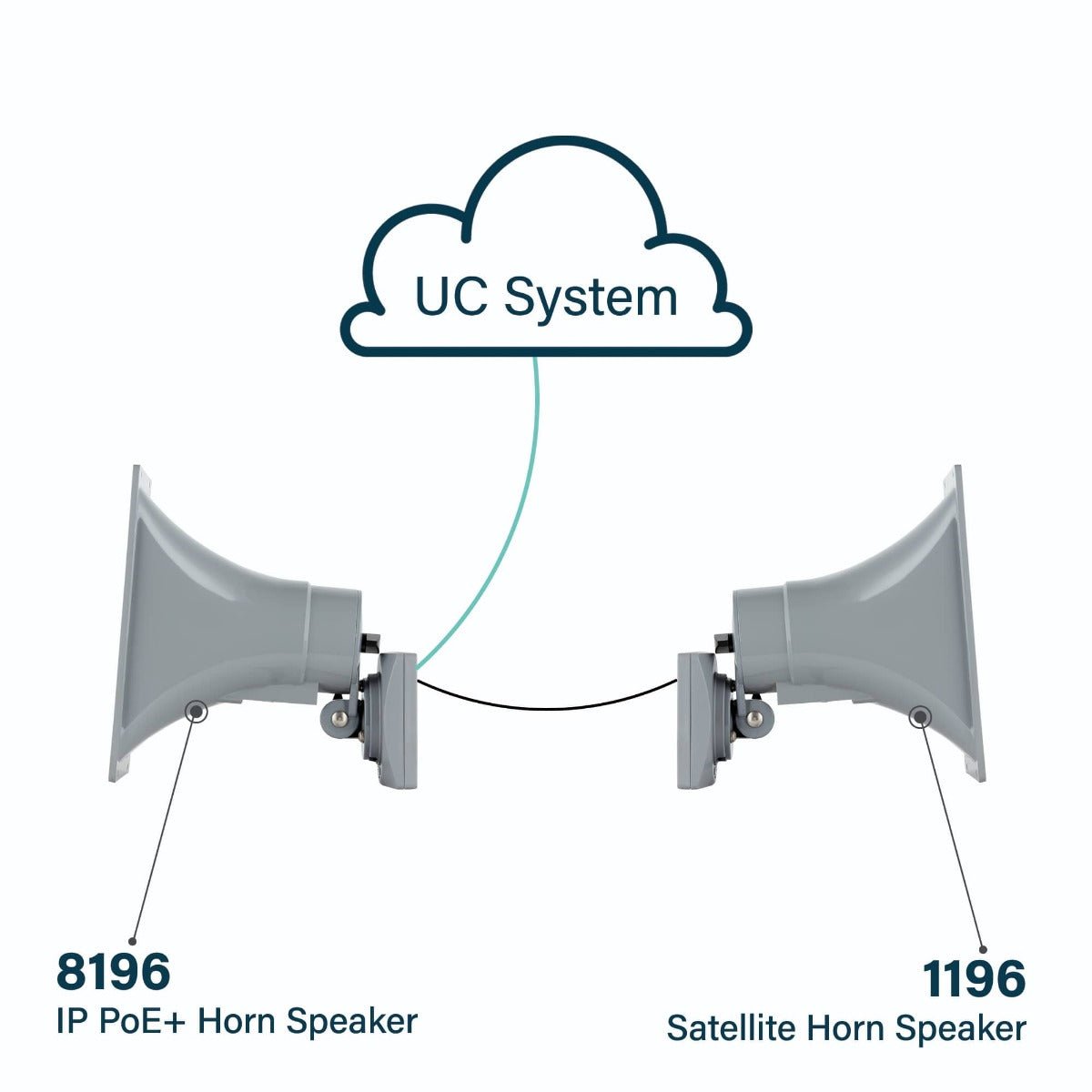

For expanded coverage, up to three satellite speakers may be connected to the 8196 speaker sharing the 16W of available audio power. The 8196 IP PoE+ Horn Speaker can provide significant savings when combined with one or more 1196 satellite speakers. Satellite speakers are connected to the 8196 in a daisy chain fashion using CAT5/CAT6 standard patch cables. Each 1196 Satellite Speaker attached is detected by the 8196 IP Speaker automatically and can be monitored for connectivity. The number of attached satellite speakers is displayed in the 8196 web GUI and also visible in the 8300 Supervision Controller, if deployed.
Identical in appearance and acoustical output to the 8196 IP speaker, the satellite speakers can provide ambient noise response based on the 8196 microphone noise detection and by default automatically adopt the zone and volume settings of the 8196 speaker.
Algo 1196 Highlights:
- Identical appearance and acoustical performance to 8196 IP Speaker
- Fully Supervised
- Can daisy chain up to 3x Algo 1196 to 1x Algo 8196
- See Algo 1196 datasheet for full spec
