Description

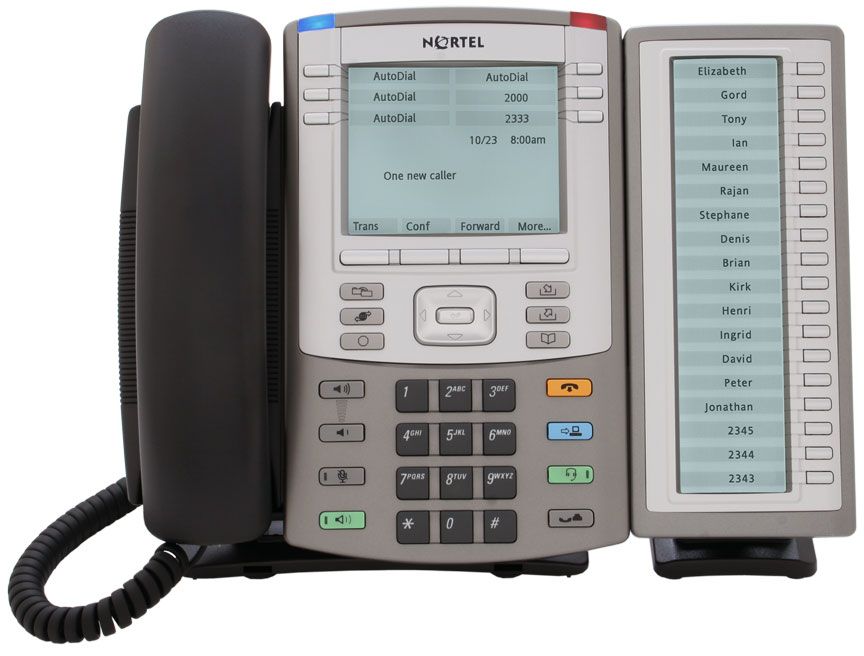

Avaya/Nortel 1100 Series Expansion Module (NTYS08)
The Expansion Module for IP Phone 1100 Series is an accessory to the IP Phone 1100 Series portfolio, which delivers investment protection at the desktop through increased scalability. Eighteen self-programmable line/feature keys per module are provided and up to three modules can be supported with an IP Phone 1120E, IP Phone 1140E or IP Phone 1150E. The Expansion Module for IP Phone 1100 Series is available on Nortel Communication Server 1000 Release 4.5, Communication Server 2000 with Release SN10 and Communication Server 2100 Release SE10.
Features:
- 18 additional self-programmable line/feature keys per module
- Up to three Expansion Modules supported per IP Phone 1100 Series deskset
- High-resolution, 118 x 414 pixel, graphical, backlit eight-level grayscale display
- Continuous angle tilt-stand matches angle of IP Phone
- 802.3af Power over Ethernet or local AC power options
- Optional backlighting of the display
- Wall mountable using standard jack pins or mounting screws
- Tight integration with Nortel Communication Server feature sets
- Leverages the award-winning sleek ergonomic design of the IP Phone 1100 Series
- Color: Graphite with silver-metallic bezel finish
Compatibility:
- Line/feature key expansion for IP Phone 1120E, IP Phone 1140E and IP Phone 1150E
- Number of modules supported is Nortel Communication Server dependent. Consult Nortel Communication Server documentation for further details on support
