Description

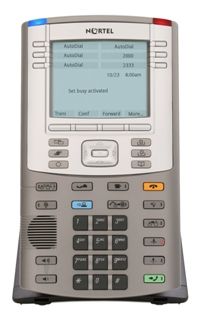

Avaya/Nortel 1150E IP Phone
IP Phone 1150E is a multi-line, specialty IP Phone designed for ACD and IP Contact Center environments. IP Phone 1150E supports up to twelve line/programmable feature keys* and features seven additional fixed keys dedicated for use by agents or supervisors. IP Phone 1150E leverages the IP Phone 1100 Series design and includes a high-resolution, backlit, graphical, grayscale pixel-based display, an integrated USB port for enhanced navigation and entry, integrated Bluetooth agent headset support and integrated Gigabit Ethernet to deliver superior performance and user experience.
Avaya/Nortel 1150E Features
- High resolution, fully backlit, bitmapped, graphical Film Super Twist Nematic (FSTN) Liquid Crystal Display with anti-glare screen, 240 x 160 pixel, with support of eight grayscale levels
- Twelve fixed business telephony keys including Hold, Goodbye,Volume Up, Volume Down, Mute, Directory, Message/Inbox, Shift/Outbox, Quit, Copy, Expand and ServicesFour context-sensitive soft label keys for easy-to-use navigation**
- Four-way navigation cluster (left, right, up, down arrows) plus Enter key
- Integrated USB port for standard USB mice, keyboards, keyboard emulation devices and powered hubs
- Integrated Bluetooth 1.2 Audio Gateway
- Supports 18-button Expansion Module for IP Phone 1100 Series via integrated Expansion Module/ Console port*****
- Integrated 10/100/1000 IEEE Base-T auto-sensing Ethernet Switch for shared PC access (one LAN and one PC port) supports traffic from collocated PC
- Supports IEEE 802.3af power standard, pre-standard Nortel and Cisco proprietary powering schemes
- Universal local AC power adapter as option (brick style) supported
Avaya/Nortel 1150E Compatibility
- Nortel Communication Server 1000 Release 4.5 and later
- Nortel Communication Server 2100 (initial support on Release SE10 and later)
- Media Gateway 1000B Expansion Chassis
- Contact Center 6.0
- Symposium Contact Center Server (SCCS) 5.0
- Symposium Express Contact Center (SECC) 4.2
