Description

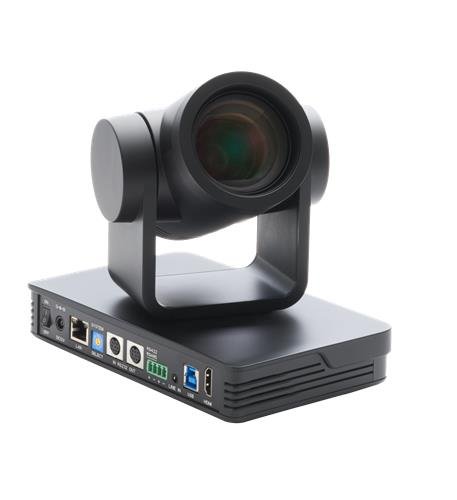

Boom MAGNA Video Conferencing Camera
The Boom MAGNA features a Ultra HD 4K @ 60fps, 12x optical zoom, Multiple video outputs, noise reduction, remote control and multi-codec IP streaming. The Boom MAGNA is perfect for medium to large conference rooms.
Why the Boom MAGNA is a buy:
- Ultra HD 4K @ 60fps
- 82° field of view
- PTZ with 12x optical zoom
- USB 3.0, HDMI and LAN
- Sony CMOS sensor
- Remote control for quick PTZ
- Zoom Certified
- 3-year limited hardware warranty
Boom MAGNA Features
- 4K Ultra HD: up to 4K @ 60fps
- Image sensor: 4K Sony
- CMOS sensor (1/2.8in)
- View angle: 82°
- PTZ parameters: Pan: : ±170° Tilt: -30°/+90°
- Zoom: 12x optical zoom
- Presets: 255 (10 with remote)
- Resolution: 8.51 MP, 16:9
- Focus: Auto, manual, one push
- Video output: HDMI, USB 3.0
- Video codec:LAN: H.265, H.264, USB 3.0: H.265, H.264, MJPEG, YUY2, NV12
- Network protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA
- Audio input: Double track 3.5mm linear input
- Audio output: HDMI, LAN, USB 3.0
- Connectivity: LAN, RS232, RS422/RS485, USB 3.0, HDMI, Audio input
- Input voltage: DC12V ±10%
- Input current: <1A
- Power: <12W
- Temperature: 15°F - +120°F (-10°C - +50°C)
- Dimensions: 7.13in x 4.53in x 5.87in (181mm x 115mm x 149mm)
- Weight: 2.54lbs/1.15kg
- Cable length: Power supply: 8ft (244cm), RS232: 6.58ft (200cm),USB 3.0: 4.83ft (147cm)
- Compatible platforms: Zoom, Teams, Webex, Meet, Bluejeans, GoToMeeting, Skype and more
- 3-year limited hardware warranty
- Boom MAGNA Datasheet
Boom MAGNA Package Contents
- Camera
- power supply
- RS232 cable
- USB 3.0 cable
- IR Remote
- quick guide
