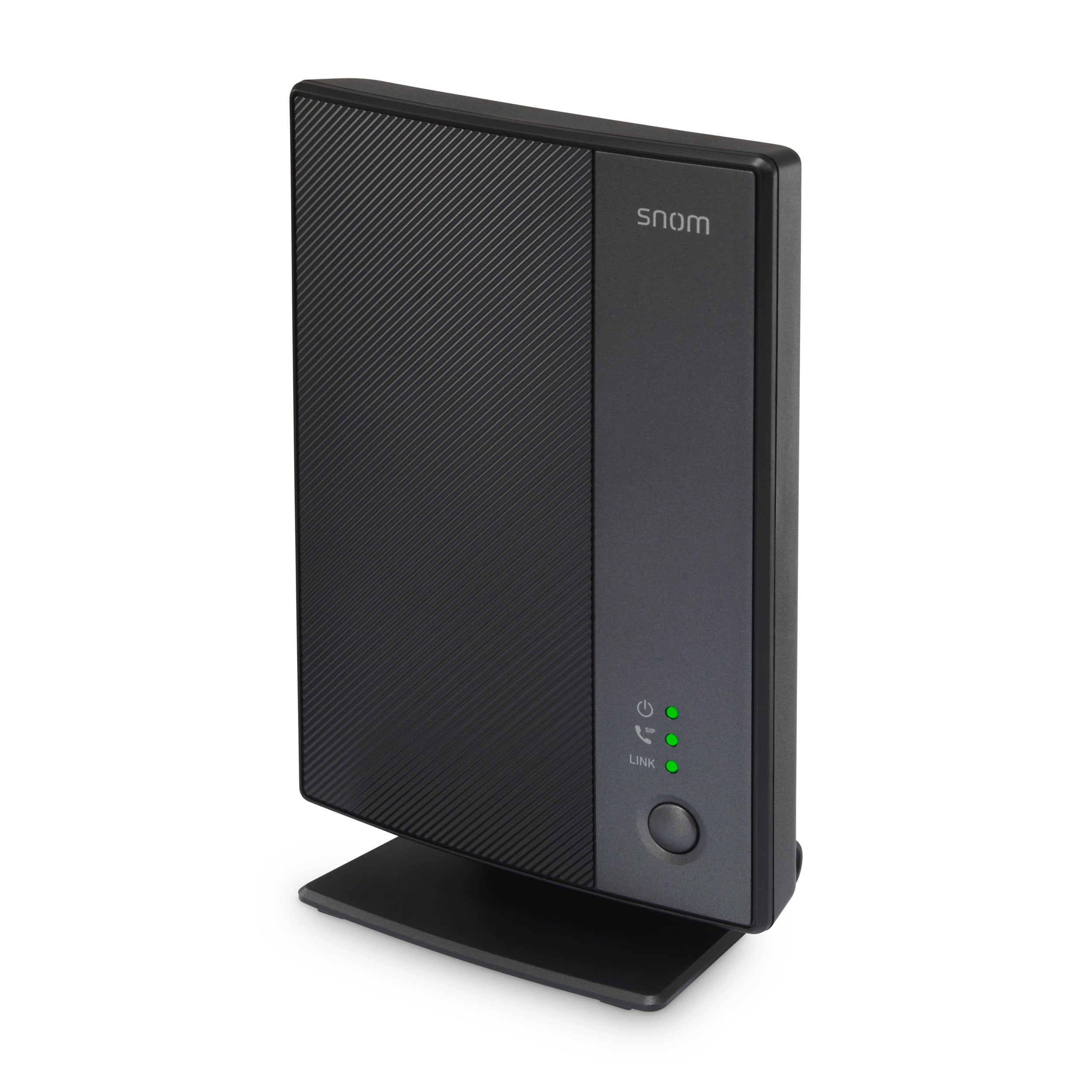

Snom M500 SIP DECT Multicell Base Station

SnomSKU: 00004524

Condition: New

Price:
Sale price$199.00

Login for lower price
Stock:
In stock

Description

Snom M500 SIP DECT Multicell Base Station (00004524)

The Snom M500 Pro DECT wireless system is a business solution that offers a sleek, minimalistic design and reliable range, and incorporates audio-enhancing technologies. The system can be paired with up to two base stations for expanded DECT range and call capacity, and offers both color handsets and desk phones, each equipped with programmable buttons for customization. It also features over-the-air updates to keep all devices up-to-date and seamless handover between base stations, allowing for easy movement throughout the office without fear of dropped calls. Additionally, it is built on DECT technology which provide better reliability and security than WIFI, and has a charging battery that last up to 19 hours with easy hold feature.

The Snom M500 DECT Wireless Family is a set of wireless phones and a base station that use DECT technology to provide reliable and secure communication. The family includes the M500 Pro Multicell Base Station, M58 Desk Phone and M55 Handset. The phones and base station have a minimalistic sleek design and feature audio-enhancing technologies for clear sound quality. They are easy to set up and can expand with your business. The wireless desk phones and handsets do not require ethernet connectivity, offering flexibility and mobility in the workplace. Each M500 Pro can pair with 8 handsets or desk phones for 8 concurrent calls and multiple base stations can be paired to increase phone pairing, call capacity, and range. The base station offers good range inside and around the facility with no dead zones or dropped calls. The handsets and desk phones provide built-in Bluetooth connectivity and have features like easy call handling, public broadcasting, and background noise reduction.

Snom M500 Features

DECT:

  • Frequency bands:
    • EU: 1880 - 1900 MHz
    • US: 1920 - 1930 MHz
  • Output power: EU < 250mW, US < 100 mW
  • Protocols: DECT 6.0
  • Seamless handover and roaming
  • Wideband audio
  • Authentication/encryption of base and handset

Range:

  • Indoors: Up to 50 meters
  • Outdoors: Up to 300 meters (for indoor use only)

System Features:

  • Up to 10 registered phones in single-cell setup
  • Up to 48 SIP accounts
  • Up to 8 narrowband or 4 wideband calls per station
  • Up to 16 registered phones in multicell setup
  • Up to 2 registered base stations in multicell setup
  • Shared call emulation
  • Programmable keys
  • Busy phone monitoring
  • Paging zones
  • Intercom
  • Remote XML and LDAP directories
  • Shared directory with up to 500 entries

Audio, Codes:

  • G.722
  • G.711 A-law, u-law
  • G.726
  • G.729ab
  • iLBC
  • OPUS
  • Codec negotiation, codec switching

User interfaces:

  • 2 dual color LED - SIP and DECT status
  • 1 green LED - power
  • Reset key
  • Function key - DECT pairing/locator
  • USB (future expansion)
  • Web interface

Installation:

  • Positioning: Desk/Wall Mount
  • Remote software updates via HTTP/HTTPS/TFTP
  • Automatic loading of settings via HTTP/HTTPS/TFTP
  • Zero touch provisioning and authentication with Mutual TLS through individual certificate issued by Snom CA
  • Completely configurable through the web interface
  • Static IP, DHCP support
  • NTP (Network Time Protocol)
  • 2nd RJ45 for M500 network daisy chain

Hardware Specifications:

  • Weight: approx. 307g
  • Dimensions: 189mm x 123mm x 70mm with stand
    175mm x 123mm x 38mm without stand
  • Power over Ethernet (PoE) IEEE802.3af Class 2, optional 5V DC power adapter if no PoE
  • Ethernet Connector: 2x RJ45
    LAN Interface: GigE
    Color: Black

Network:

  • HTTP and HTTPS
  • LLDP
  • IEEE 802.1Q
  • TLS 1.2

More Information:



Snom M900 Compatibility

  • Compatible handsets:
    Snom M55 DECT Handset: 00004526 (US)
    Snom M58 DECT Desk Phone: 00004528 (US)
  • Optional Power Adaptor Snom A6 / US Clip: 26-350200-3UL
