Description

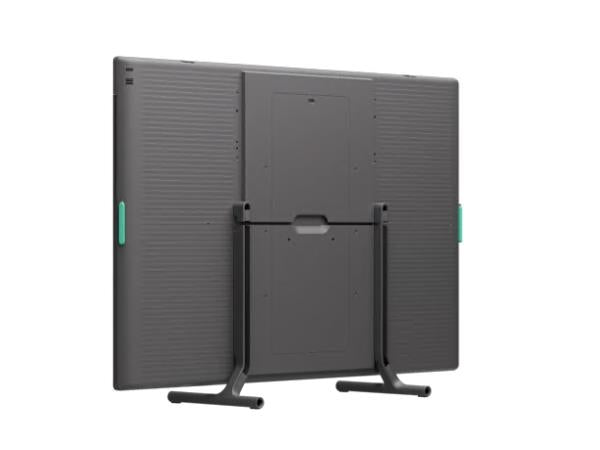

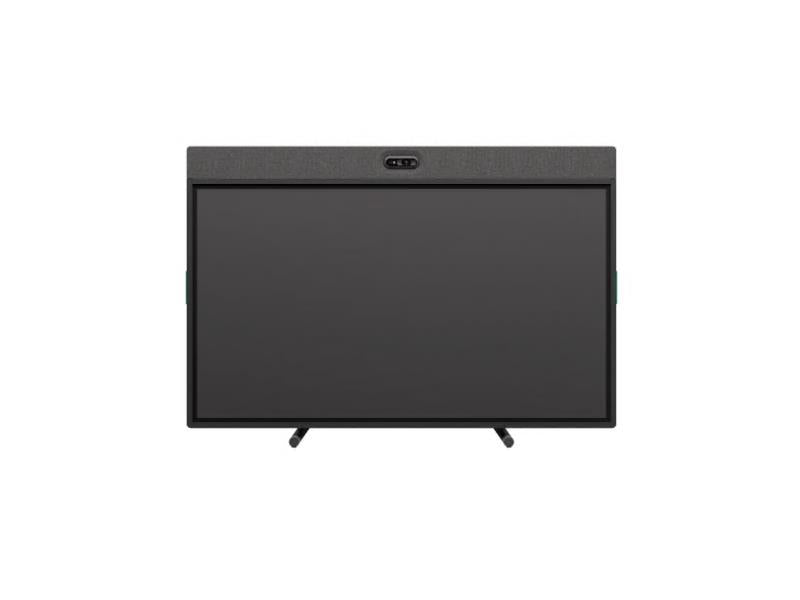

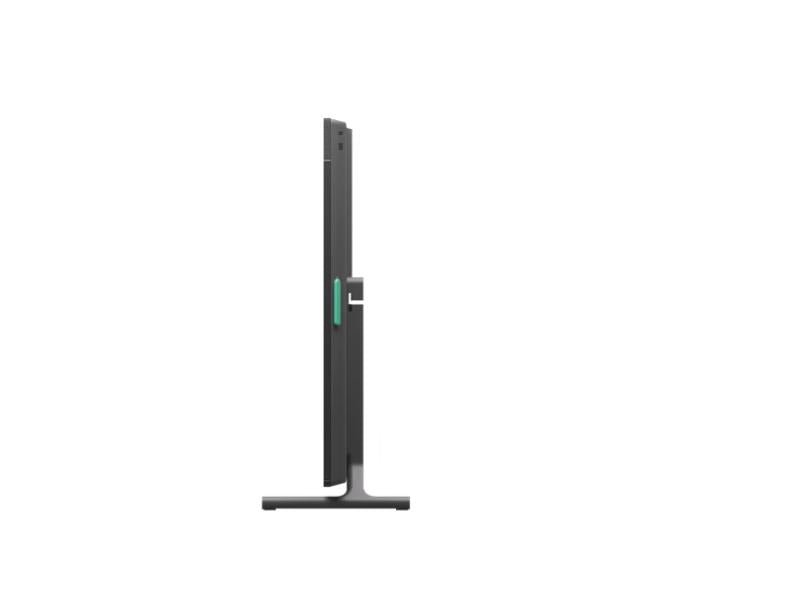

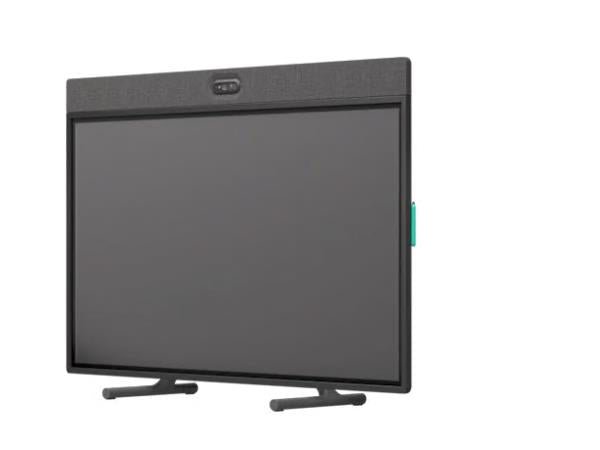

Logitech Rally Board 65
Options:
- Logitech Rally Board 65 - Graphite (960-001697)

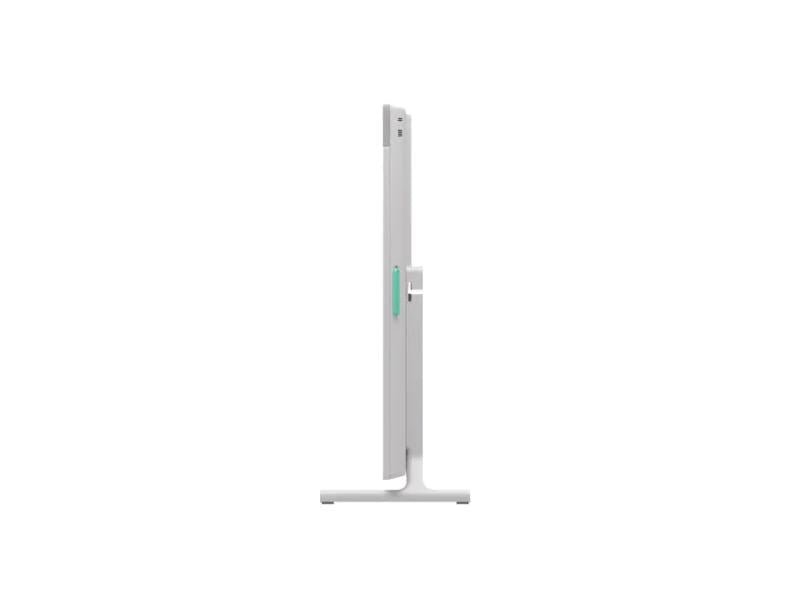

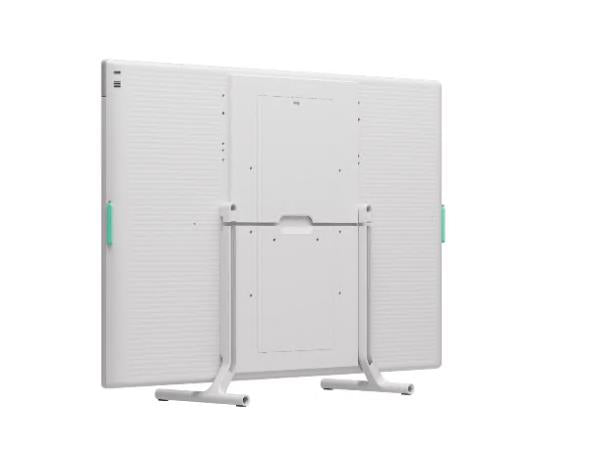

- Logitech Rally Board 65 - Off White (960-001729)
PLEASE NOTE: This product is oversized and may require a custom shipping quote.
Elevate your meeting rooms and open spaces with the Rally Board 65, an all-in-one video conferencing solution designed for seamless collaboration. This 65-inch touchscreen delivers stunningly clear video, rich audio, and smart AI-enhanced features, combining everything you need into one sleek package. Setup is a breeze—get it running in minutes with easy steps and minimal IT assistance required. With versatile mounting options and remote configuration, the Rally Board 65 adapts effortlessly to your space, bringing professional-grade video conferencing right to your fingertips.
**Table stand is included in box, compatible with standard VESA wall mounts, and optional Rally Board 65 Cart is available as an accessory.
Designed for flexibility, Rally Board 65 is made for the way you meet. It works seamlessly with leading platforms like Microsoft Teams, Zoom, and Google Meet* in Android, PC, or BYOD mode, so you can easily adapt Rally Board 65 for current and future needs. Plus, it provides multiple mounting options (optional: cart, vesa wall mount), so you can add it to any open space or meeting room. It’s made to deploy with the camera above or below the screen to allow all participants to maintain natural eye contact in all spaces.
Please see the following datasheets for more information:
Logitech Rally Board Features
Technical Specifications
General
- Built-in Components: Front microphone array, digital PTZ camera, dual full-range ported speakers, dual tweeters, ultrasonic emitter, cable management and retention system, integrated motorized privacy shutter, depth mapping camera, radar motion sensing, and environmental sensors
- Support for 2nd display, up to UHD 4K60 (3840 x 2160)
- Automatic motorized privacy shutter
- HDMI ingest at up to 4K60 (3840 x 2160) resolution
- Network Protocol Support: IPv4, IPv6
- Proxy support: IP-based proxy, FQDN-based proxy, proxy using PAC file
System Requirements
- 100 - 240v
- Internet Connection: Wired or wireless
- Room solution software license (not included)
Display
- 65-inch LCD screen
- IR-based touch with 20 points of touch
- UHD 4K (3840 x 2160) screen resolution
- 16:9 aspect ratio
- Anti-glare coating
- Anti-fingerprint coating
- Contrast ratio: 5000:1 Typical
- Brightness: 400 nits Typical
Camera
- Main camera
- Imaging sensor: 1-inch, 20.3MP
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Automatic motorized tilt based on device orientation
- Zoom: 4X HD digital zoom
- Distortion-corrected field of view
- Diagonal: 115.7°
- Horizontal: 103.3°
- Vertical: 60.7°
- Depth mapping camera
- Diagonal Field of View: 145°
- Horizontal Field of View: 121°
Speakers
- Dual full-range ported speakers
- Driver: 0.08 x 2.76in (2x 70 mm)
- Sensitivity: 89 dB SPL at 1W/0.5 m
- Rated Power: 8W
- THD at 1W, 1 kHz <2%
- Dual high-frequency tweeters
- Driver: 0.08 x 1.22in (2x 31 mm)
- Sensitivity: 93 dB SPL at 1W/0.5 m
- Rated Power: 8W
- THD at 1W, 4 kHz < 2%
Microphones
- Front microphone array
- Frequency Response: 90Hz-16KHz
- Sensitivity: -36 dB FS +/-1 dB @ 1 Pa
- Microphone data rate output: 48KHz
- Pickup Range: Up to 23 ft (7m)
- RightSound 2
- AI Speech Enhancement removes transient and stationary noise
- Beamforming with AI Beam Selection
- AI Speech Detection
- AI Direction of Speech
- Acoustic Echo Cancellation and Residual Echo Suppression
Sensors
- Temperature
- Humidity
- Volatile organic compounds
- Carbon dioxide
- PM2.5
- PM10
- Radar
- Ambient light
- For the latest information on certification and compatibility, see www.logitech.com/support/vc-certifications
Interfaces
- 1 x HDMI Out: up to 4K60
- 1 x HDMI In: up to 4K60
- USB-A: 3 x USB 3.1
- USB-C: 1 x Type C USB 3.1 with DP Alt Mode
- Line-Out: 0.14 in (3.5 mm) line-level audio output
- Network: 0.04oz (1 g)0/100/1G Ethernet
- Wi-Fi: 802.11a/b/g/n/ac
- Bluetooth: Bluetooth Low Energy
- EXT: RJ45 reserved for future use
Power and Cables
- Power supply: Built-in auto-sensing 100-240V
- AC Cable: 9.84 ft (3 m)
Environmental
- Operating temperature: 0-35 °C
- Storage temperature: -40-60 °C
- Humidity: 10-95%
Security
- File-based encryption: AES-256
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMB
Accessories
- Rally Board 65 Cart
- Active USB Cable
Warranty Information
Dimensions
Rally Board 65 (device only)
- Width: 59.05 in (1500 mm)
- Height: 38.94 in (989 mm)
- Depth: 2.99 in (76 mm)
- Weight: 101 lb (46 kg)
- VESA Standard MIS F: 15.75 x 15.75in (400x 400 mm) and 400 x 200 mm
Rally Board 65 with included table stand
- Width: 59.05 in (1500 mm)
- Height: 41.38 in (1051 mm)
- Depth: 15.55 in (395 mm)
- Weight: 110 lb (50 kg)
Logitech Rally Board Package Contents
- Main device
- Tabletop legs (x2)
- Power cord
- Stylus (x2)
- VESA 100 PC mount
- Cable hook
- Assembly hardware and tools
- Documentation
**Compatible with standard VESA wall mounts, and optional Rally Board 65 Cart is available as an accessory.
