Description
Snom PA1 Public Annoucement System
Please note: we will be shipping out the newest PA1+
Snom PA1 SIP bridge enables businesses to extend their existing public announcement speaker system while upgrading from digital/POTs systems into SIP-based voice communication solutions. The PA1 can be used in both small and large applications due to the inclusion of a 4-watt amplifier for single speaker projects. A microphone input is provided for two-way communication. Larger projects can utilize multiple speakers driven by external high wattage amplifier(s). The PA1 serves as an auto SIP answering preamp that drives the multi-speaker setup. Use of Snom’s proven SIP stack enables wide compatibility with all SIP platforms.
See Snom PA1 Datasheet / Quick-Install Guide
Applications for the Snom PA1 include:
- Works from your Snom Handset
- 4 Watt power amplifier
- Works with handset, headset or in handsfree mode
- Easy to install
- Broadcasting annoucements over 8 ohm speakers
Snom PA1 Highlighted Features:
- Public announcement system for office floors, reception areas and waiting rooms
- Announcements in airports, trains and bus stations, and waiting lounges
- Monitoring of security-sensitive environments like entrances or reception areas
- SIP
- Multicast
- Remote maintenance
- Voltage feed via network (PoE): IEEE 802.3af, class 3
- Ethernet: 2 x IEEE 802.3, 10/100 Mbps switch
- SIP communication + Multicast
- Central configuration and maintenance
- Web interface menu
- Remote volume configuration
- 4 Watt power amplifier, class D (loudspeaker not included)
- Key for announcement of IP address and for resetting
- 2 LED status indicators

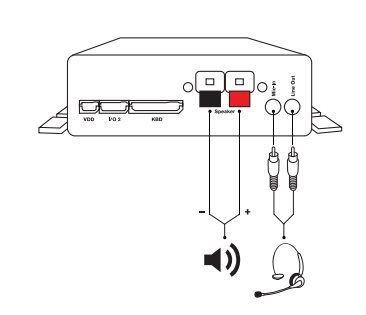

- For maintenance purposes: two 3.5 mm jacks for headphone and microphone connection
- 4 output pins controlled via web interface or DTMF
- Robust housing for wall-mount
Snom PA1 package contents:
- PA1 base unit
- Brackets, screws and expansion anchors for wall mounting
- Drill template
- Wire set
- Note: Optional power supply is available for seprate purchase - not included.
