Description

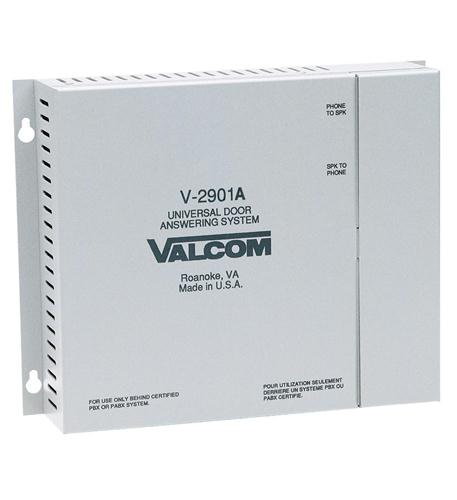

- Single door answering device
- Push a button to initiate two-way communication from the door speaker to telephone then dial a programmablecode to unlock the door
- Activates door locks
- Door unlock contact closure (strikeplate required)
- Alarm functions
- Transmit and receive volume control
- Background music input with volume control
- Built-in ring generator with on/off switch
- 3 Distinctive ring patterns
- Programmable options include door unlock codes number of ring cycles before door request is terminated time the door remains unlocked (per door)
- Requires -24 Vdc 600 mA (filtered) 10 Vac lamp
- Access: PBX loop start trunk port electronic or 1A2line key (line card required) or dedicated single line phone set
- Input impedance: 600 ohm
- Ouput impedance: 45 ohm
- Music level: -10dBm nominal
- Music input 4 to 600 ohms
- Power requirement: -24 Vdc 600 mA
- Weight 4.8lbs
- Dimensions: 8.6inchH x 11inchW x 2.3inchD
