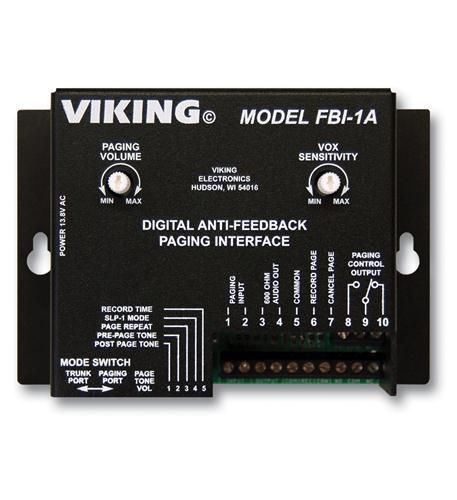

Even the best designed paging systems can experience feedback. Now you can eliminate annoying feedback over your paging speakers with Viking’s model FBI-1A digital anti-feedback paging interface. The FBI-1A utilizes state of the art digital recording technology to record the “live” page from a phone system’s paging port output or unused trunk port. The FBI-1A then immediately plays back the recorded page once or twice (selectable) over the paging system.
Pages of up to 32 seconds can be stored and the FBI-1A automatically adjusts to the page length for faster processing. In addition, the FBI-1A can be programmed to provide pre-page and post-page alert tones. |
|
Applications
Eliminate Paging Feedback in:
- Warehouses
- Factories
- Offices
- Retail Stores
- Hotels
- Airports
- Stadiums
- School Gymnasiums
- Pools
- Casinos
- Bingo Halls
- Dining Establishments
- Other large noisy areas
|
|
Features
- High quality (80K/40K) digital message storage
- High output - 2V RMS into 600 ohms
- 16 or 32 second record time (DIP switch selectable)
- Compatible with Paging ports or Trunk ports
- Activate recording from VOX detection, contact closure or loop detect (Trunk mode only)
- VOX sensitivity adjustment
- Cancel page feature
- Selectable page repeat
- Selectable pre-page alert tone
- Selectable post-page alert tone
- Adjustable alert tone volume
- N.O./N.C. relay contacts control paging system
- Record/Playback LED indicator
- Compatible with virtually all paging and telephone systems
- One year warranty
- Made in the USA
|
|
Specifications
- Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
- Dimensions: 133mm x 89mm x 44mm (5.25” x 3.5” x 1.75”)
- Shipping Weight: 0.73 kg (1.6 lbs)
- Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% noncondensing humidity
- Sampling Rate: 80K/40K (equivalent) Maximum Page Length: 16/32 seconds (DIP switch selectable)
- Output Impedance: 600 ohm Maximum Audio Output: 2V RMS (driving a 600 ohm load)
- Talk Battery: 24V DC (Trunk mode only)
- Connections: 13 cage clamp screw terminals
|
