**Please note that this does not have auto dialing built in
|
Use Dial-less Phones for Ringdown,
Courtesy or Emergency Applications

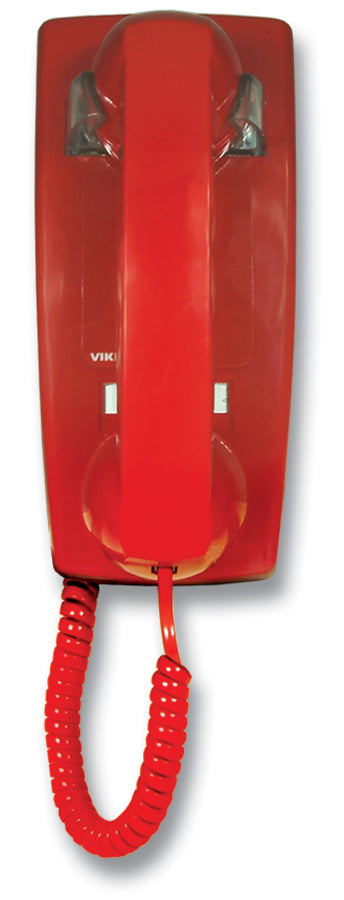

The K-1500P-D (desk) and K-1500P-W (wall) phones features
a standard wall or desk configuration with a built-in
ringer. Both are available in two colors: red or ash.
The K-1500P-D or K-1500P-W can be used on an analog
PABX station port or standard C.O. line to receive calls. It
can also be used with a dedicated ringdown circuit,
such as Viking's DLE-200B, to provide cost effective
point-to-point communications.
If an automatic Hot-Line dialer is required, the K-1900W-2 (wall) and the K-1900D-2 (desk) Hot-Line
phones are available. For similar vandal resistant
applications, the K-1500-7, K-1700-3, K1900-7, and
K-1900-8 are available!
|
Applications
- Ringdown phones
- Pool phones
- Catalog sales
- Kiosks in malls
- Courtesy and customer service phones
- Automated tellers
- Security and emergency phones
- Point to point communication when used with the DLE-200B Line
Simulator
|
Features
- Built in volume adjustable ringer
- No dial pad
- Hearing aid compatible amplified handset
with volume control
- Available in two colors: red or ash
- Optional VE-9x12 or VE-9x20 weatherproof box
|
Specifications
- Power: Telephone line powered
- Dimensions: K-1500P-W - 102mm x 121mm x 229mm (4.0 x
4.75 x 9.0), K-1500P-D - 230mm x 210mm x 120mm (9.0 x
8.25 x 4.75)
- Weight: 1.36 Kg (3 lbs)
- Environmental: 0C to 32C (32F to 90F) with 5% to 95%
non-condensing humidity
- Connections: K-1500P-D - (1) RJ11 plug, K-1500P-W - (1)
RJ11W plug
|
