Description

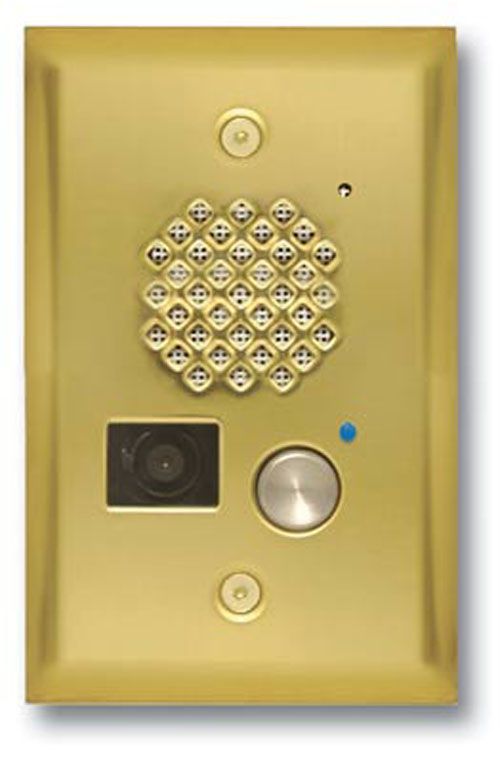

- Built-in high resolution color video camera with wide viewing tilt/swivel adjustments and wide operating temperature of -30° F to 150° F
Audio and video transmission on one CAT5E cable
Compact size: front panel is the size of a typical single gang midsize wall plate
Mounting: flush mount in a single gang electrical box (2.25inch deep x 2.00inch wide x 2.84inch tall min) electrical box or surface mount in a Viking model VE-3x5 (not included)
Available in 5 standard faceplate finishes: Brushed stainless steel oil rubbed bronze polished brass satin white and satin black
PNL-50 faceplates: replacement faceplates with matching screws available in all five standard finishes
Vandal resistant features: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate 316 stainless steel push button carbon fiber reinforced plastic speaker screen scratch resistant powder coating impact and scratch resistant camera lens and hex drive mounting screws
Weather resistant features: Mylar speaker faceplate gasket mic and speaker gasket internally sealed (IP67) push button switch sealed camera lens potted camera circuit board stainless steel phone and camera mounting hardware and UV stable weather resistant powder coating
Microphone and speaker volume controls
Programmable intelligent call progress detection for automatic hang-up on CPC silence busy signal or time out
Selectable auto answer feature for monitoring
Programmable VOX (mic/speaker) switching speed
Blue LED helps located push button indicate ringing and off-hook
Audio and video transmission on one CAT5E cable
Compact size: front panel is the size of a typical single gang midsize wall plate
Mounting: flush mount in a single gang electrical box (2.25inch deep x 2.00inch wide x 2.84inch tall min) electrical box or surface mount in a Viking model VE-3x5 (not included)
Available in 5 standard faceplate finishes: Brushed stainless steel oil rubbed bronze polished brass satin white and satin black
PNL-50 faceplates: replacement faceplates with matching screws available in all five standard finishes
Vandal resistant features: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate 316 stainless steel push button carbon fiber reinforced plastic speaker screen scratch resistant powder coating impact and scratch resistant camera lens and hex drive mounting screws
Weather resistant features: Mylar speaker faceplate gasket mic and speaker gasket internally sealed (IP67) push button switch sealed camera lens potted camera circuit board stainless steel phone and camera mounting hardware and UV stable weather resistant powder coating
Microphone and speaker volume controls
Programmable intelligent call progress detection for automatic hang-up on CPC silence busy signal or time out
Selectable auto answer feature for monitoring
Programmable VOX (mic/speaker) switching speed
Blue LED helps located push button indicate ringing and off-hook
