Yealink MVC940 Teams Room Systems - MVC940-C3-002

Yealink MVC940 Teams Room Systems - MVC940-C3-002 (1106963)

Please see the replacement model: Yealink MVC940-C5-008

Yealink MVC series are native and easy-to-use video conferencing solutions specially designed for Microsoft Teams rooms. The MVC series provides a full-scene video conference solution to cover all of the meeting rooms from large to small. According to the unique characteristics of the video conferencing room, a high-performance mini-PC is specially released. In the design of mini-PC, it takes into account both aesthetics and practicability, that fully integrating the cable management with itself to provide a flexible and reliable deployment solution for any meeting room. The MVC series features the native Microsoft Teams-tailored user interface that is easy to be operated with close-to-zero learning curve, and you just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join. Yealink MVC940 includes two UVC84 USB PTZ cameras with 12x optical zoom and it provides you with a multi-camera solution that supports camera layout adjustment to meet the requirements of extra-large meeting rooms.

Please see Yealink MVC940 Datasheet for more information

Yealink MVC940 Features

MCore Mini-PC

• 8th-gen Intel® QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output with CEC supported
• Bluetooth and Wi-Fi
• 1x Yealink VCH port (RJ45), connect to MTouch II
• 4 x USB3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot
• Integrated cable management

MTouch II Touch Console

• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5mm headset jackHuman Motion Sensor
• Angle adjustable bracket (28° ~ 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C HD video input

UVC84 USB PTZ Camera

• 4K camera
• 12x optical zoom
• Field of view (diagonal): 80°
• Auto Framing
• Camera presets
• Pan range: 200°
• Tilt range: 130°
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

Camera-Hub

• Support up to 9 cameras
• Support camera layout
• 1 x RCA-in
• 1 x RCA-out
• 1 x Yealink Microphone port (RJ-45)
• 3 x USB 2.0 Type-A
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot
• 1 x Ethernet port for camera connection

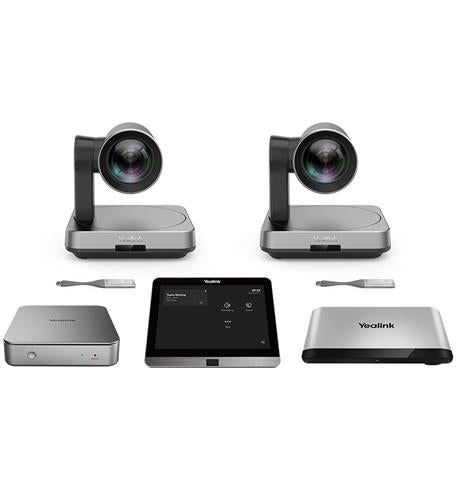

Package Contents:

• MCore Mini-PC
• MTouch II touch panel
• Camera-Hub
• 2 x UVC84 USB PTZ camera
• 2 x WPP20 wireless presentation pod
